Description

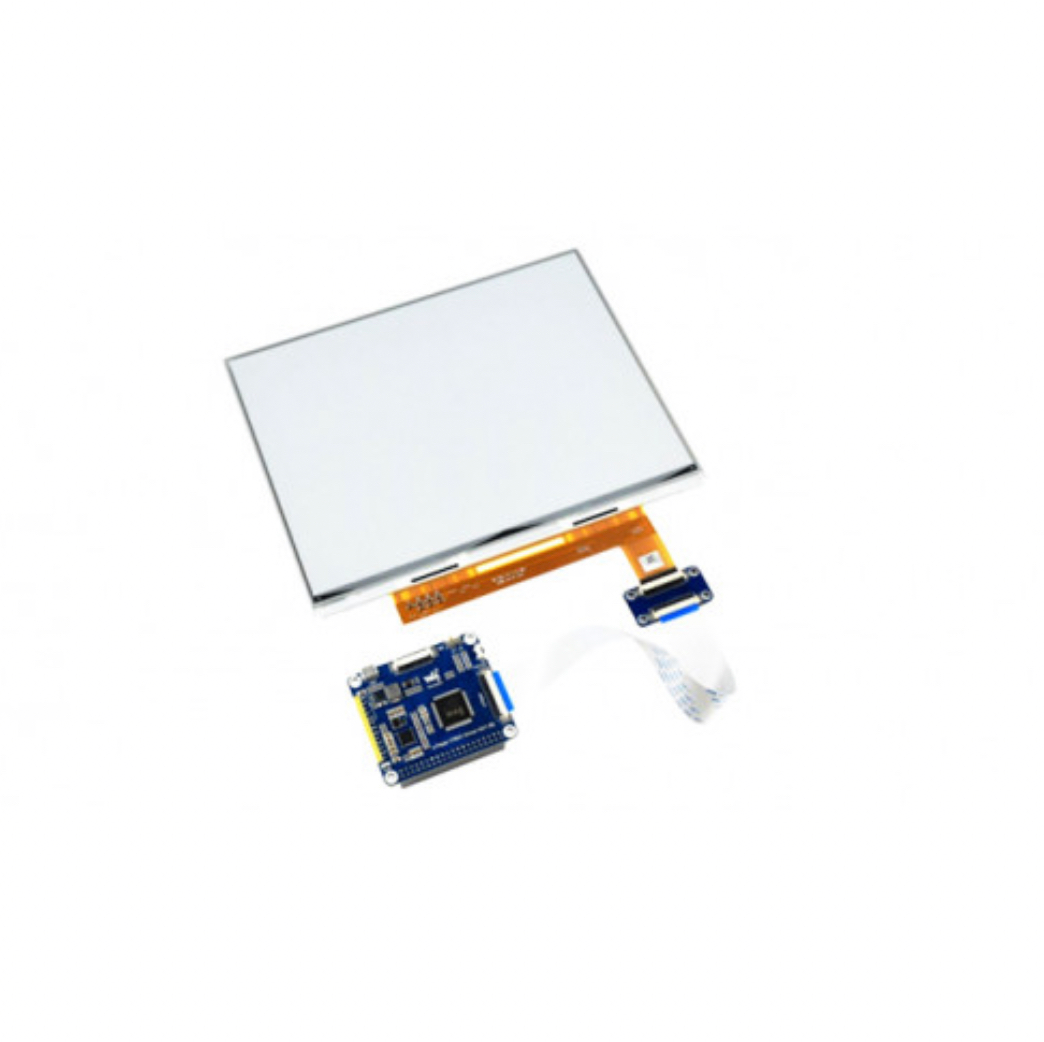

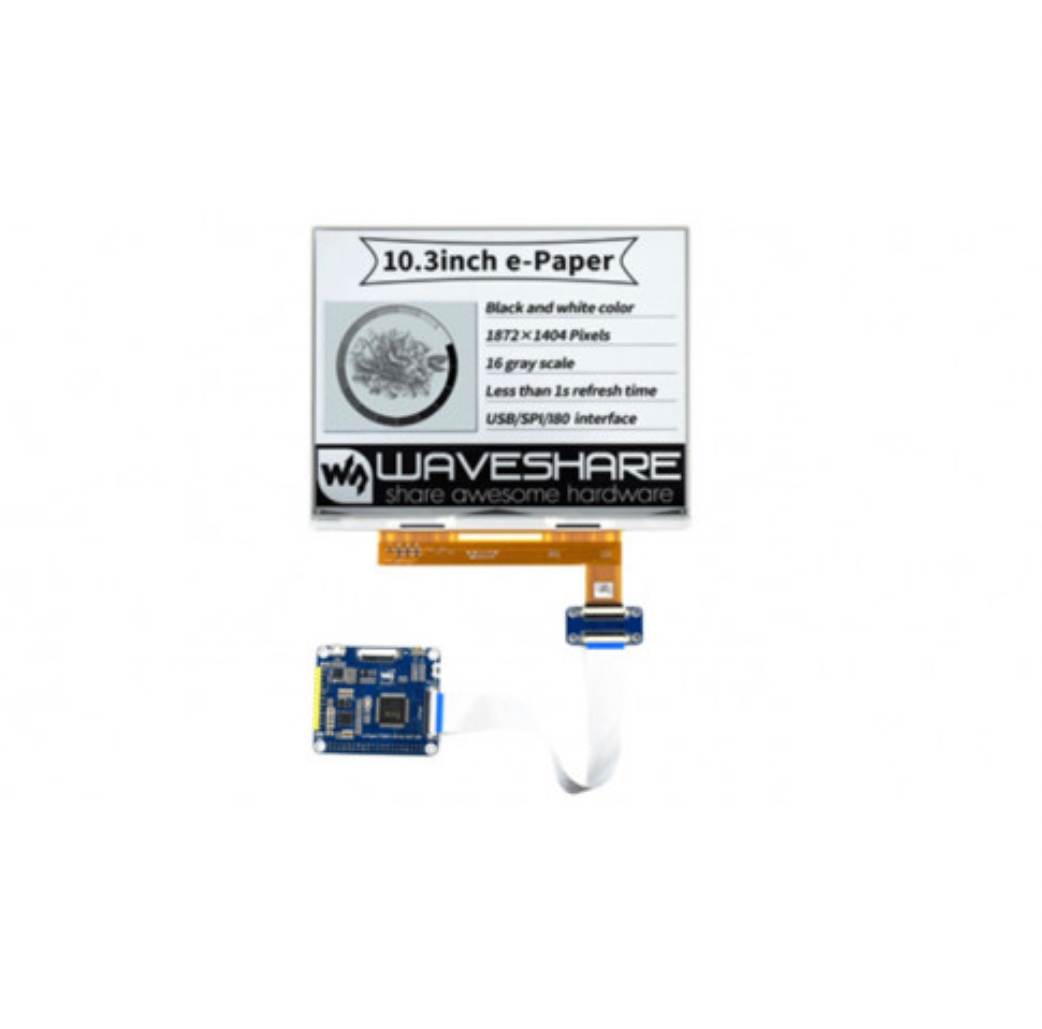

Wave 10.3" E-Paper Display HAT for Pi

This is an E-Paper display with control board HAT for the Raspberry Pi. It is 10.3inches, 1872×1404 resolution, and interfaces using USB/SPI/I80. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Quick Spec

• Operating Voltage: 5V
• Interface: USB/SPI/I80/I2C
• Display Size: 209.66 × 157.25mm
• Dot Pitch: 0.112 × 0.112mm
• Resolution: 1872 × 1404
• Display Colour: black, white
• Gray Scale: 2-16 (1-4 bit)
• Full Refresh Time: 450ms
• Total Refresh Power: 1.2W (typ.)
• Total Standby Power: 0.1W (typ.)
• Viewing Angle: >170°
• Dimensions: 216.7 × 174.4 × 0.78mm
• Net Weight: 487g

Dimensions

Onboard USB/SPI/I80 Control Interface

SPI Pinout

• VCC: Power, 5V input
• GND: Ground
• MISO: SPI MISO pin
• MOSI: SPI MOSI pin
• SCK: SPI SCK pin
• CS: SPI chip selection, low active
• RST: External reset, low active
• HRDY: Busy status output, low active

Resources

• Product Page
• Product Wiki
• IT8951 Driver Board Schematic
• 7.8inch E-Paper Adapter Board Schematic
• E-Paper Datasheet
• IT8951 Datasheet
• Demo Code

Shipping List

• 1 x 10.3inch e-Paper
• 1 x e-Paper IT8951 Driver HAT (B)
• 1 x 10.3inch e-Paper Adapter
• 1 x 40PIN FFC (same side contact)
• 1 x USB type A plug to micro B plug cable
• 1 x PH2.0 20cm 8Pin
• 1 x RPi screws pack (2pcs)

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor
